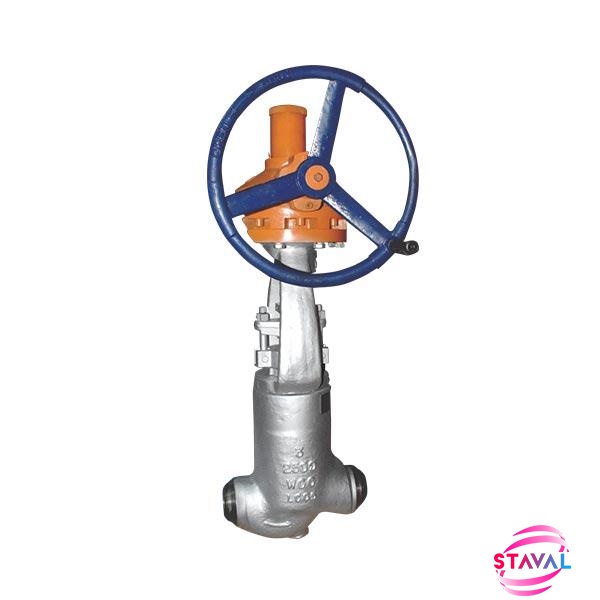

Pressure Seal Globe Valve 3Inch 2500LB WCC

ASME B16.34 PSB Gate Valve

3Inch,2500LB, WCC, A105+STL, Handwheel

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel,Stainless Steel,Alloy Steel,Bronze
  • Construction:

    Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical Disc
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Key Specification

Type

Globe Valve

Size

3Inch

Pressure

2500LB

Construction

Pressure Seal, Rising Stem, Full Bore, Plug Disc

Connection

BW End

Body/Bonnet Material

A216 WCC

Wedge Material

A105+STL

Stem Material

A276 410

Seat Material

ASTM A105+STL

Bolt/Nut

B7/2H

Design Standard

BS1873

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-10℃~+400

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL


Inspection Report Issued By STAVAL
