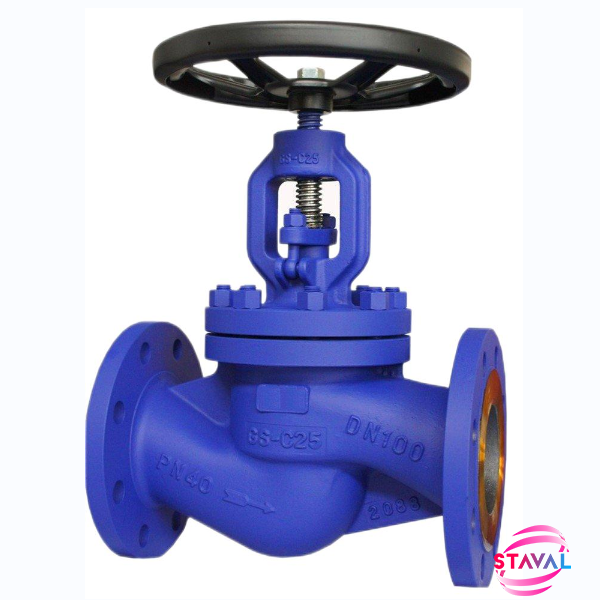

DIN EN Rising Stem Globe Valve
DN100,PN40,GS-C25, A105+13Cr, Handwheel
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,BronzeConstruction:
Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical DiscBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
General Description:
STAVAL can provide a choice of different face to face dimensions for DIN/EN cast steel globe valve. STL globe valve has good sealing performance and longer service life, which is suitable for industry, power system, exhaust gas purification device, hot water, heat transfer oil application, shipbuilding industry, etc.
Design Feature:
Low emission control,Integral body seat,Plug or throttling disc,Optional Impact hand wheel
Key Specification
Type |
Globe Valve |
Size |
DN100 |
Pressure |
PN40 |
Construction |
OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Plug Disc |
Connection |
RF End |
Body/Bonnet Material |
GS C25 |
Wedge Material |
ASTM A105+13Cr |
Stem Material |
A182 F6A |
Seat Material |
STL |
Bolt/Nut |
B8/8 |
Design Standard |
DIN3356 |
Face to Face Dimension |
DIN 3202-F1 |
End Connection |
DIN2543 |
Inspection & Test Std. |
EN1226-1/2 |
Temperature Range |
-29℃~+425℃ |
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
