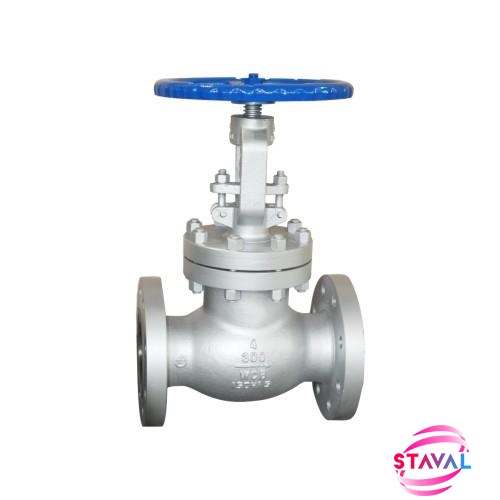

BS1873 Rising Stem Globe Valve
4Inch,300LB, WCB, A105+13Cr, Handwheel
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,BronzeConstruction:
Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical DiscBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
General Description:
BS1873 cast steel globe valve is one of our main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.
Design Feature:
Low emission control,Threaded or welded seat,Plug or throttling disc,Optional Impact hand wheel,Pressure seal bonnet for high pressure working
Application:
Refinery,Petrochemical,Power plant,General Industry
Key Specification
|
Type |
Globe Valve |
|
Size |
4Inch |
|
Pressure |
300LB |
|
Construction |
OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Plug Disc |
|
Connection |
RF End |
|
Body/Bonnet Material |
A216 WCB+STL |
|
Wedge Material |
ASTM A105+13Cr |
|
Stem Material |
A182 F6A |
|
Seat Material |
STL |
|
Bolt/Nut |
B8/8 |
|
Design Standard |
BS1873 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
