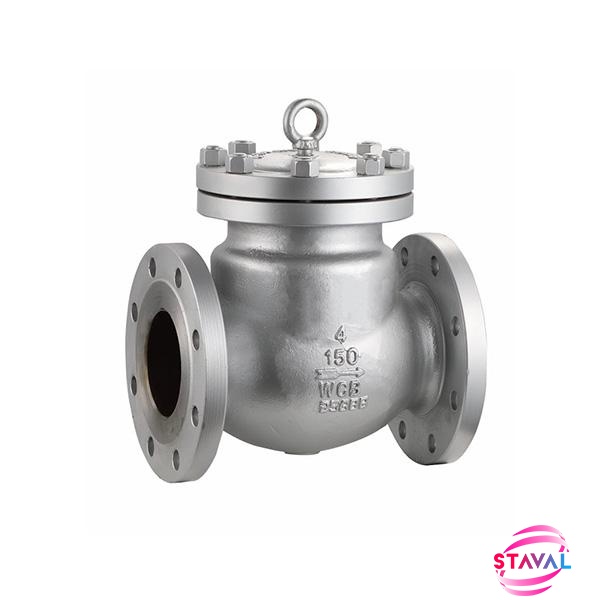

BS1868 Swing Check Valve
4Inch,150LB,WCB,WCB+STL
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Cast IronConstruction:
Bolt/Weld Bonnet,Full Open, Internal/External HingeBore:
Full BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details

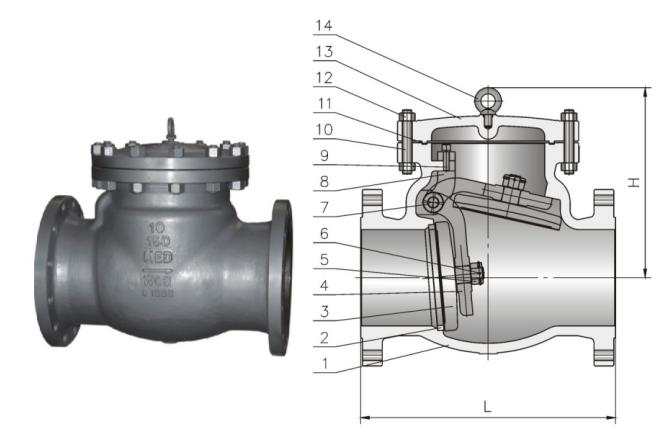

Swing Check Valve Construction
Key Specification
Type |
Swing Check Valve |
Size |
4Inch |
Pressure |
150LB |
Construction |
Bolt Cover, Full Bore, Full Open, Internal Hinge |
Connection |
RF End |
Body/Bonnet Material |
A216 WCB+STL |
Disc Material |
A216 WCB |
Hinge Material |
A216 WCB |
Hinge Pin Material |
A182 F6A |
Bolt/Nut |
B7/2H |
Design Standard |
BS1868 |
Face to Face Dimension |
ASME B16.10 |
End Connection |
ASMEB 16.5 |
Inspection & Test Std. |
API598 |
Temperature Range |
-29℃~+450℃ |
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
