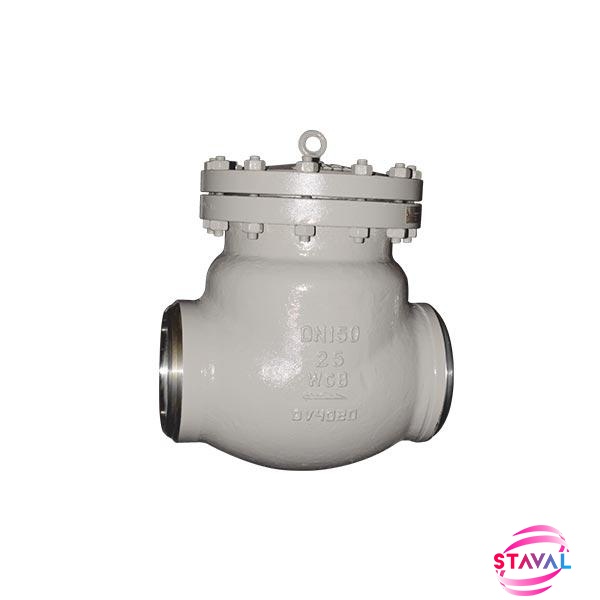

BS 1868 Swing Check Valve
DN150,PN25, WCB, WCB+13Cr
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,Bronze,Cast IronConstruction:
Bolt/Weld Bonnet,Full Open, Internal/External HingeBore:
Full BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
Key Specification
Type |
Swing Check Valve |
Size |
DN150 |
Pressure |
PN25 |
Construction |
Bolt Bonnet, Full Bore, Full Open, Internal Hinge |
Connection |
BW End |
Body/Cover Material |
A216 WCB+13Cr |
Disc Material |
A216 WCB+13Cr |
Hinge Material |
A216 WCB |
Hinge Pin Material |
A182 F6a |
Bolt/Nut |
B7/2H |
Design Standard |
BS1868 |
Face to Face Dimension |
DIN3202 |
End Connection |
EN1092-1 |
Inspection & Test Std. |
EN12266-1 |
Temperature Range |
-29℃~+425℃ |
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
