API6D Top Entry Reduce Bore Trunnion Ball Valve
24x20Inch,900LB,WCB,F53+TCC,Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
BB/Full Weld, Side/Top Entry, 1/2/3PcsBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details

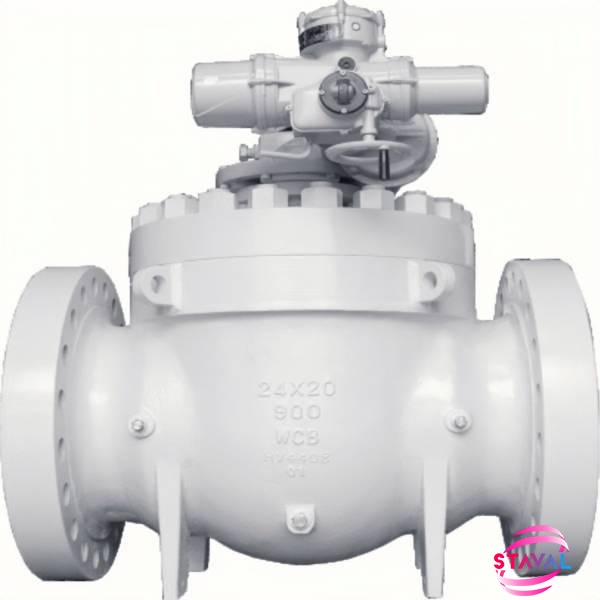

Top Entry Ball Valve 24x20Inch 900LB WCB
Top Entry ball valve is suitable for natural gas pipeline, the valve body is integrated, reducing dew point, convenient maintenance, advanced technology, high acceptance pressure and wide range of use.
Design Feature:
The product has been designed for fire protection, anti-spray and anti-static. It is characterized by full port or reduced port, double blockage and bleeding, emergency sealant injection and cavity pressure self-releasing
Key Specification
|
Type |
Ball Valve |
|
Size |
24Inch x 20Inch |
|
Pressure |
900LB |
|
Construction |
Top Entry, Reduce Bore, Trunnion, Bolt Bonnet, |
|
Connection |
RTJ End |
|
Body/Bonnet Material |
A216WCB |
|
Ball Material |
A182 F53+TCC |
|
Stem Material |
A182 F53 |
|
Seat Material |
A182 F53+TCC |
|
Bolt/Nut |
B7/2H Zn |
|
Design Standard |
API6D |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Fire Safe Design |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+538℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
