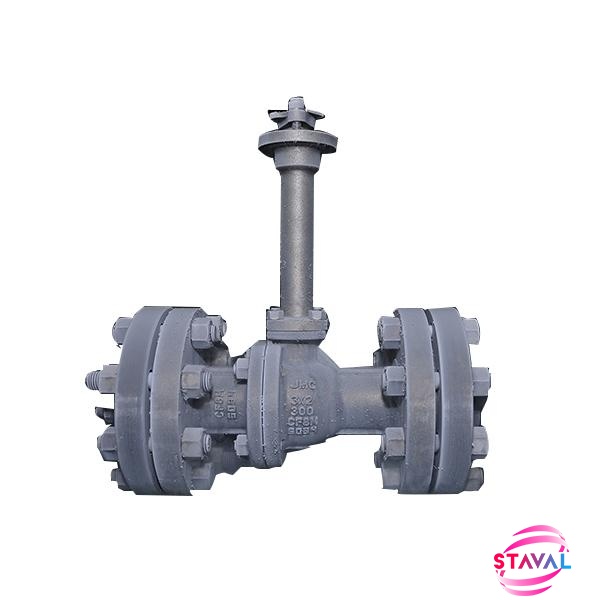

API6D 2Pcs Reduce Bore Floating Ball Valve
3x2Inch,300LB,CF8M,F316+PCTFE,Lever
Manufacture STAVAL Factory Offers.
Size Range:
1Inch ~ 60Inch (DN25 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
BB/Full Weld, Side/Top Entry, 1/2/3PcsBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details
Feature:
Fire Safe Design, Anti Static Design, Anti Blowout Stem, Cryogenic Treatment, Ceyogentic Test
Key Specification
|
Type |
Ball Valve |
|
Size |
1Inch |
|
Pressure |
600LB |
|
Construction |
2Pcs, Full Bore, Floating, Side Entry, Bolt Bonnet, |
|
Connection |
RTJ End |
|
Body/Bonnet Material |
A351 CF8 |
|
Ball Material |
A182 F304+Ni55 |
|
Stem Material |
17-4PH |
|
Seat Material |
A182 F304+Ni55 |
|
Bolt/Nut |
B8/8 |
|
Design Standard |
API6D |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Fire Safe |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-40℃~+300℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
