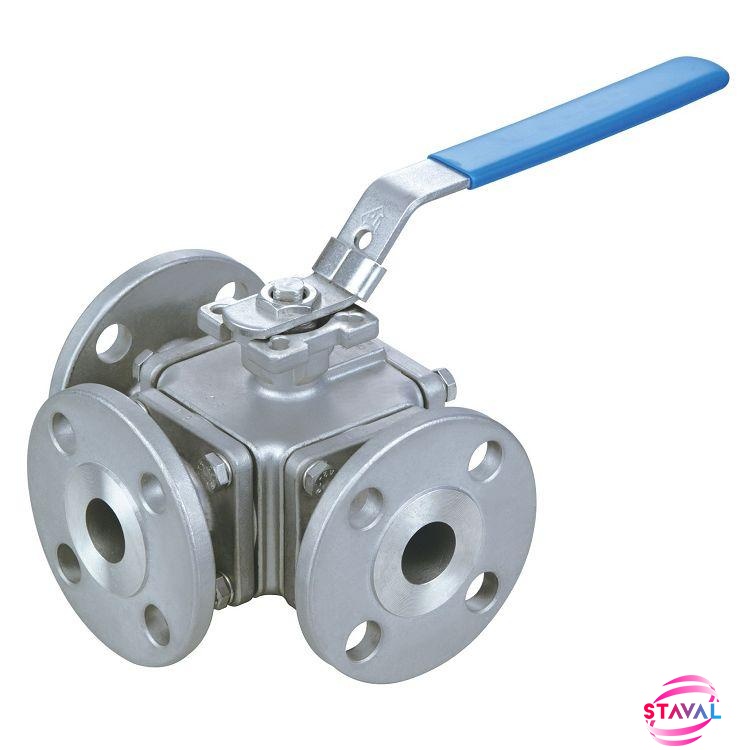

API6D 3 Way Full Bore Floating Ball Valve
2Inch,150LB,CF8,F304+RPTFE,LEVER
Manufacture STAVAL Factory Offers.
Size Range:
1/2Inch ~ 8Inch (DN15 ~ DN200)Pressure Range:
150LB~300LB(PN16~PN40)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
Bolt BonnetBore:
Full BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details
General description:
Three-way ball valve is a double seats structure, can also to be made as four seats structure in case of customer’s requirement.Three - way ball valves are available in T type or L - type. The T - shape can make three orthogonal pipelines connected with each other and cut off the third channel, play the role of shunt, confluence.The L-type can only connect two orthogonal pipes, and cannot keep the third pipe connected to each other at the same time.
Design Feature:
Product have full port or Reduce port and can optional locking device,ensure TA-Luft Low emission control and ISO 5211 top flange (long neck type is optional)，The product also can Anti-static and Blowout-proof stem, and have fire safe design.
Application:
Can be applied to the following products: oil refineries, pharmaceuticals, chemicals, petrochemicals and power stations.
Key Specification
|
Type |
Ball Valve |
|
Size |
2Inch |
|
Pressure |
150LB |
|
Construction |
3 Way, Full Bore, Floating, Side Entry, Bolt Bonnet, |
|
Connection |
RF End |
|
Body/Bonnet Material |
CF8 |
|
Ball Material |
F304 |
|
Stem Material |
17-4PH |
|
Seat Material |
RPTFE |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
BS5351 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASME B16.5 |
|
Fire Safe |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+120℃ |
|
Medium |
Oil, Water, Gas |
