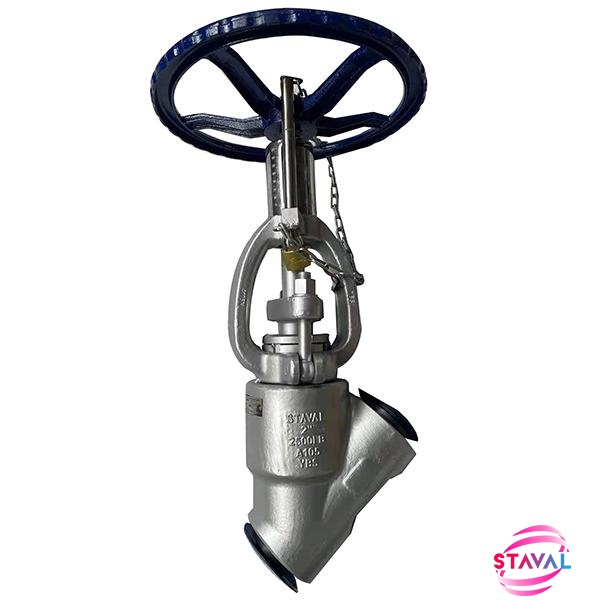

ASME B16.34 Y Type Globe Valve
2Inch, 2500LB, A105,A105+STL,HW+Locking+Indicator
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical DiscBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
Y Globe Valve Construction
Key Specification
|
Type |
Y Globe Valve + LOCKING DEVICE+POSITION INDICATOR |
|
Size |
2Inch |
|
Pressure |
2500LB |
|
Construction |
OS&Y, PSB, Full Bore, |
|
Connection |
BW End |
|
Body/Bonnet Material |
ASTM A105+STL |
|
Disc Material |
ASTM A105+STL |
|
Stem Material |
A182 F6A+N |
|
Seat Material |
STL |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
API602 |
|
Face to Face Dimension |
Manufacture's Std |
|
End Connection |
ASME B 16.34 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
