Home Ball Valve

Forged Ball Valve

 Ball Valve DN20 PN40 A105N

ASME B16.34 PN40 Ball Valve
ASME B16.34 PN40 Ball Valve

Ball Valve DN20 PN40 A105N

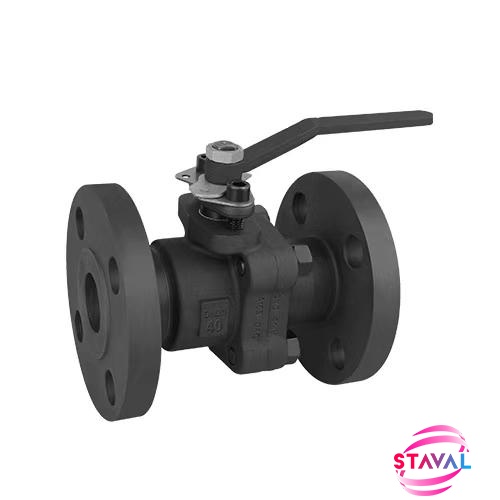

ASME B16.34 Floating Full Bore Ball Valve

DN20, PN40, A105N, F304L+DEVLON, Lever

Manufacture STAVAL Factory Offers.

  • Product origin:

    China

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)

  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)

  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze

  • Construction:

    BB/Full Weld, Side/Top Entry, 1/2/3Pcs

  • Bore:

    Full Bore, Reduce Bore

  • End Connection:

    BW, Flange

  • Seat:

    Soft Seat, Metal Seat, PMSS Seat

  • Working Temp.:

    -196°C to +600°C
Inquire now

  • Product Details

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem

Key Specification


Type

Ball Valve

Size

DN50

Pressure

PN40

Construction

2Pcs, Full Bore, Floating, Side Entry, Bolt Bonnet,

Connection

RF End

Body/Bonnet Material

ASTM A105

Ball Material

A182 F304L

Stem Material

A182 F304L

Seat Material

DEVLON

Bolt/Nut

B7/2H

Design Standard

ASME B16.34

Face to Face Dimension

EN558

End Connection

EN1092-1

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+120℃

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
