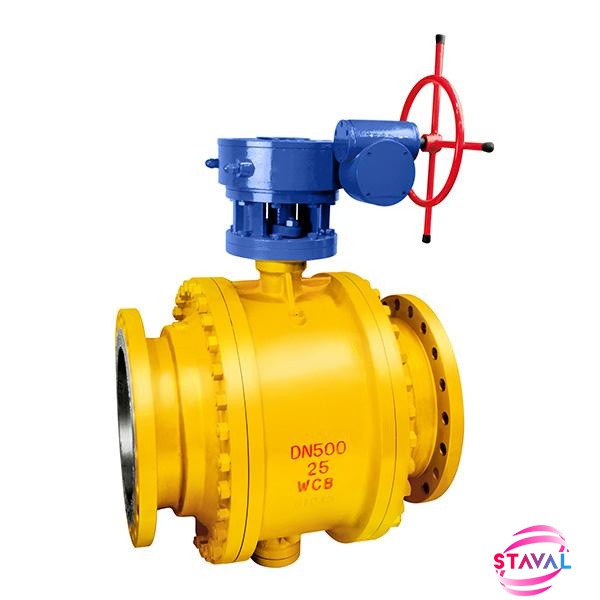

DIN3357 3Pcs Full Bore Trunnion Ball Valve
DN500,PN25,WCB,F316+ENP+RPTFE,Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
BB/Full Weld, Side/Top Entry, 1/2/3PcsBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details
Feature:
Fire Safe Design, Anti Static Design, Anti Blowout Stem, Double Block Double Bleed, Double Position, Drian And Vent
Key Specification
|
Type |
Ball Valve |
|
Size |
DN500 |
|
Pressure |
PN25 |
|
Construction |
3Pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet, |
|
Connection |
RTJ End |
|
Body/Bonnet Material |
A216 WCB |
|
Ball Material |
A182 F316+ENP |
|
Stem Material |
XM-19 |
|
Seat Material |
A182 F316+ENP +RPTFE |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
DIN3352 / ISO17292 |
|
Face to Face Dimension |
EN558-1 |
|
End Connection |
BS EN1092-1 |
|
Fire Safe |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+120℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
