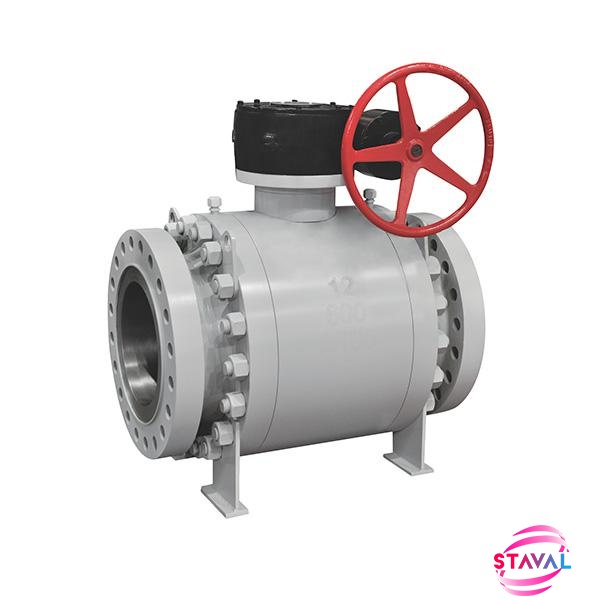

API6D 3Pcs Full Bore Trunnion Ball Valve,
12Inch,600LB,A105,A105+ENP+NYLON,Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
BB/Full Weld, Side/Top Entry, 1/2/3PcsBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details
General Description:

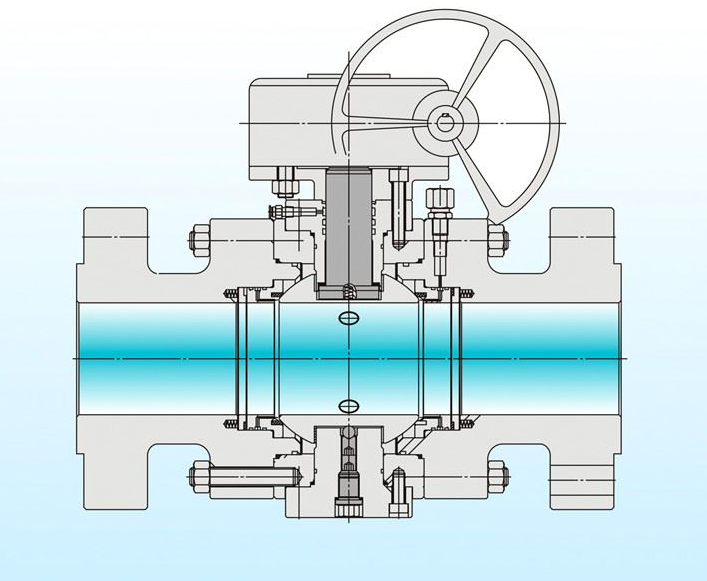

API6D Pipeline Ball Valve is trunnion mounted design with 3-pc split body, which is normally forged body with better appearance and quality. The lead time is also shorter than the casting type.
Design Feature:
The product has been designed for fire protection, anti-spray and anti-static. It is characterized by full port or reduced port, double blockage and bleeding, emergency sealant injection and cavity pressure self-releasing
Key Specification
|
Type |
Ball Valve |
|
Size |
12Inch |
|
Pressure |
600LB |
|
Construction |
3Pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet, |
|
Connection |
RTJ End |
|
Body/Bonnet Material |
ASTM A105 |
|
Ball Material |
A105+ENP |
|
Stem Material |
A182 F6A |
|
Seat Material |
A105+ENP+NYLON |
|
Bolt/Nut |
B7/2H+Zn |
|
Design Standard |
API6D |
|
Face to Face Dimension |
ASMEB 16.10 |
|
End Connection |
ASME B16.5 |
|
Fire Safe |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-20℃~+80℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
