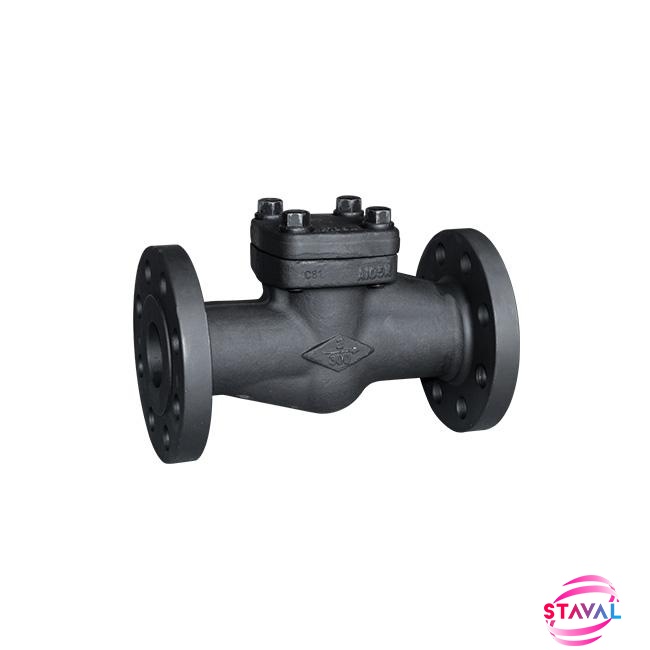

API602 Forge Swing Check Valve
2Inch, 300LB, A105N, F6A
Manufacture STAVAL Factory Offers.
Size Range:
½Inch ~ 2Inch (DN10 ~ DN50)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,BronzeConstruction:
Bolt/Weld Cover, Full OpenBore:
Full BoreEnd Connection:
BW, Flange, SW, NPT, PEWorking Temp.:
-196°C to +600°CProduct Details
|
Type |
Swing Check Valve |
|
Size |
2Inch |
|
Pressure |
300LB |
|
Construction |
Bolt Cover, Full Bore |
|
Connection |
RF End |
|
Body/Cover Material |
A105N |
|
Disc Material |
A182 F6A |
|
Hinge Material |
A276 410 |
|
Seat Material |
A182 F6A |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
API602 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+540℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
