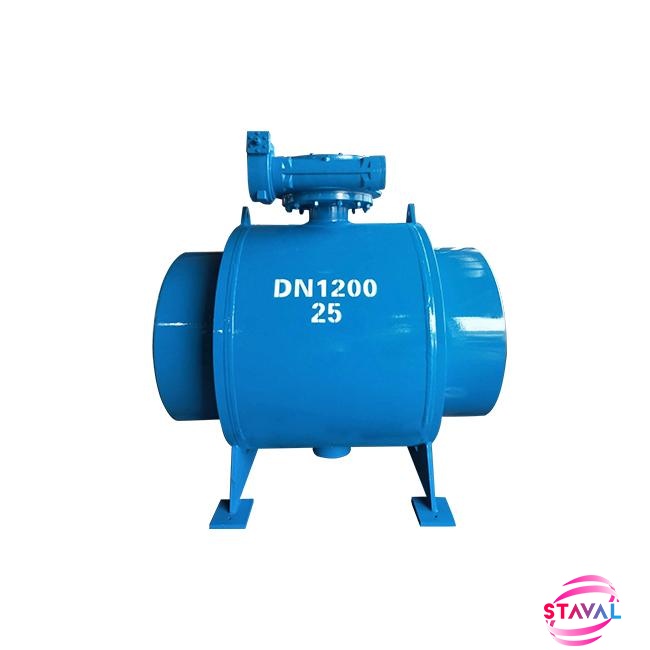

Pipeline Full Weld Ball Valve DN1200 PN25 P245GH(Q235B)

ISO17292 FB Trunnion Full Weld Pipeline Ball Valve

DN1200,PN25,P245GH,SS304+PTFE,Gear Box

Manufacture STAVAL Factory Offers.

Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)
Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)
Material Range:
A105, P245GH, Q235B, 20# Steel, QT450
Construction:
Full Weld, Solid/Hollow/Sleeve Ball
Bore:
Full Bore, Reduce Bore
Seat:
Soft Seat, Metal Seat
Working Temp.:
-196°C to +600°C

Inquire now

Product Details

Feature

Fire Safe Design, Anti Static Design, Anti Blowout Stem

Key Specification

Type	Ball Valve
Size	DN1200
Pressure	PN25
Construction	3Pcs, Full Bore, Trunnion, Side Entry, Full Welded,
Connection	BW End
Body/Bonnet Material	QT450 (P245GH, Q235, 20#)
Ball Material	SS304 (Hollow Ball )
Stem Material	A182 F6A
Seat Material	PTFE
Bolt/Nut	B7/2H
Design Standard	ISO 17292
Face to Face Dimension	EN558
End Connection	ASME B16.25
Fire Safe	API607
Inspection & Test Std.	API598
Temperature Range	-29℃~+129℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
