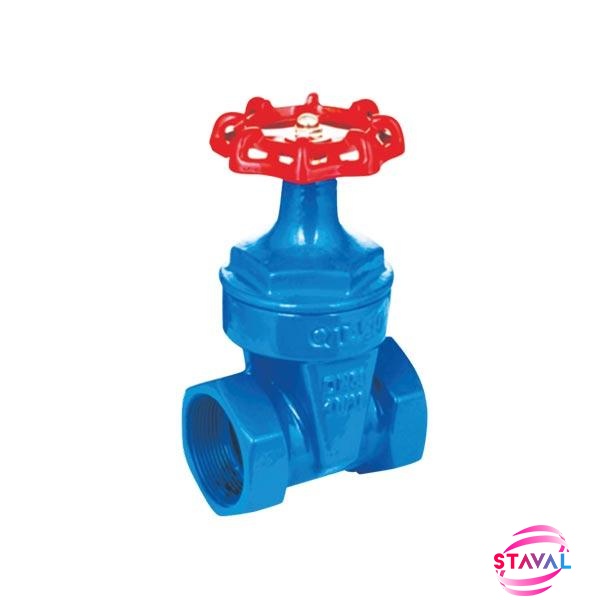

DIN3352 Non Rising Resilent Gate Valve
DN20,PN16,GGG50,GGG50+EPDM,Handwheel
Manufacture STAVAL Factory Offer.
Product origin:
ChinaSize Range:
½Inch ~ 2Inch (DN10 ~ DN50)Pressure Range:
150LB ~ 300LB (PN10 ~ PN25)Material Range:
Cast Iron, Ductile Iron, A216 GS C25Construction:
Rising Stem, Non Rising Stem, Resilent WedgeBore:
Full Bore, Reduce BoreEnd Connection:
FlangeSeat:
Soft Seat, Metal SeatProduct Details
|
Type |
Gate Valve |
|
Size |
DN20 |
|
Pressure |
PN16 |
|
Construction |
Non Rising Stem, Bolt Bonnet, Full Bore, Reslient Wedge |
|
Connection |
Thread End |
|
Body/Bonnet Material |
GGG50 (QT450) |
|
Wedge Material |
GGG50+EPDM |
|
Stem Material |
2Cr13 |
|
Seat Material |
EPDM |
|
Bolt/Nut |
Carbon Steel |
|
Design Standard |
DIN3352 |
|
Face to Face Dimension |
DIN3202-F4 |
|
End Connection |
ASME B16.1 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
