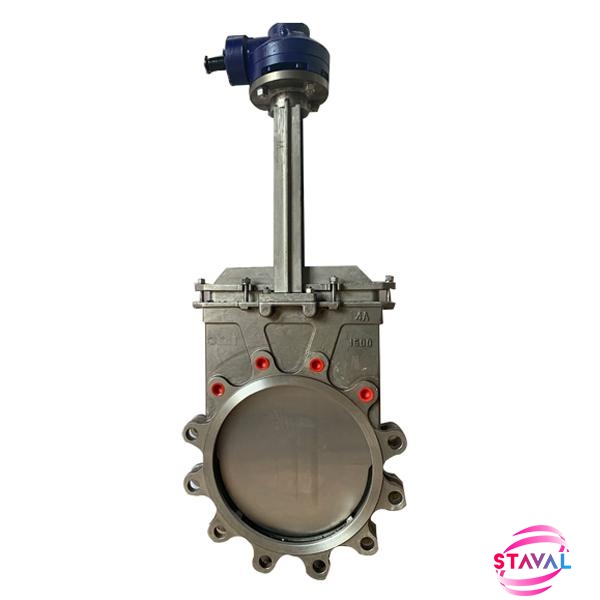

MSS SP-81 Knife Gate Valve
10Inch,150LB, 4A, F51+Viton, Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 80Inch (DN50 ~ DN2000)Pressure Range:
150LB ~ 300LB (PN10 ~ PN16)Material Range:
Carbon/Stainless/Alloy Steel,Bronze, Cast IronConstruction:
Rising Stem, Non Rising StemEnd Connection:
Wafer, Flange, LugSeat:
Soft Seat, Metal SeatProduct Details
Key Specification
|
Type |
Knife Gate Valve |
|
Size |
10Inch |
|
Pressure |
150LB |
|
Construction |
Rising Stem, Bolt Bonnet |
|
Connection |
Lug End |
|
Body/Bonnet Material |
4A |
|
Knife Material |
F51 |
|
Stem Material |
F51 |
|
Seat Material |
Viton |
|
Bolt/Nut |
B8/8 |
|
Design Standard |
MSS SP-81 |
|
Face to Face Dimension |
MSS SP-81 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
MSS SP-81 |
|
Temperature Range |
-29℃~+80℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
