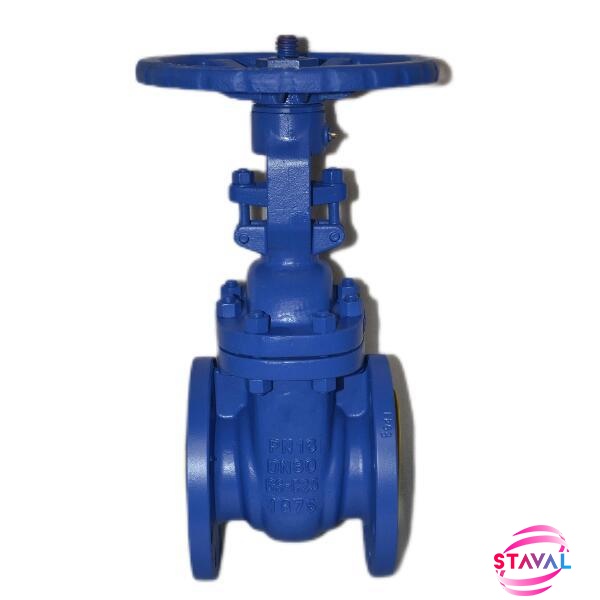

DIN3352 Rising Stem Gate Valve
DN80,PN16,GS C250, WCB+13CR Trim,Handwheel
Manufacture STAVAL Factory Offers
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon/Stainless/Alloy Steel,Bronze, Cast IronConstruction:
Rising/Non Rising,Bolt/Weld Bonnet,Flexible/Solid WedgeBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
DIN Gate Valve Construction
Structural features
1. DIN standard flange gate valve has compact structure, reasonable design, good rigidity, smooth passage and small flow resistance coefficient
2. The sealing surface is made of stainless steel and cemented carbide with long service life.
3. Using flexible graphite packing, reliable sealing, light and flexible operation.
4. Drive mode: electric, pneumatic, gear rotation, structural form: elastic wedge single gate, rigid wedge single gate double gate
5. Water seal gate valve is widely used in chemical, thermal power, power plants and other oil and steam pipelines to connect or cut off the medium in the pipeline.
Key Specification
|
Type |
|
|
Size |
DN80 |
|
Pressure |
PN16 |
|
Construction |
OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Flexible Wedge |
|
Connection |
RF End |
|
Body/Bonnet Material |
GS C25 |
|
Wedge Material |
WCB+13CR |
|
Stem Material |
F6A |
|
Seat Material |
13CR |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
DIN3352 |
|
Face to Face Dimension |
DIN3202 |
|
End Connection |
DIN2543-DIN2547 |
|
Inspection & Test Std. |
DIN3230 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
