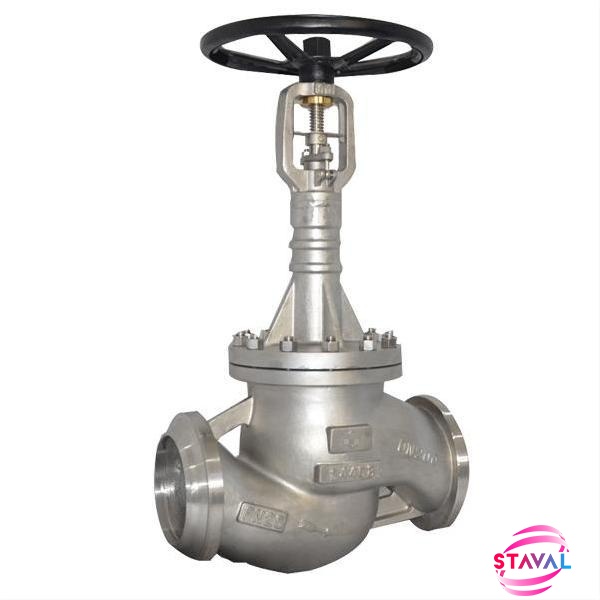

EN13709 Rising Stem Bellow Seal Globe Valve
DN200,PN25, 1.4408,1.4408+STL, Handwheel
Manufacture STAVAL Factory Offers.
Product origin:
ChinaSize Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
Rising Stem, Bolt / Weld Bonnet, Bellow SealBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
General Description:

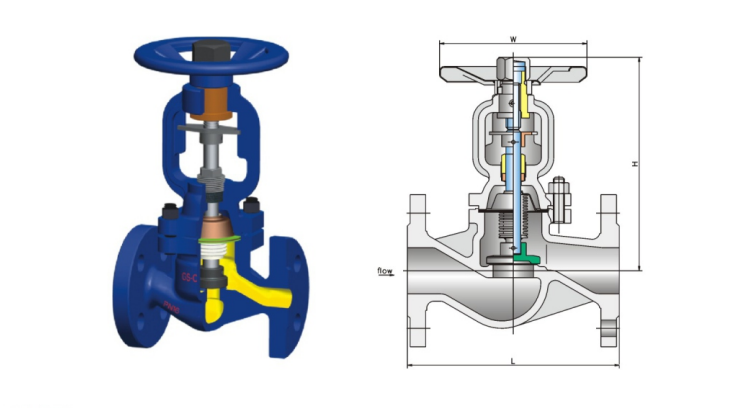

The bellows sealed globe valve uses a closed bellows that can be stretched and compressed to replace the packing, which can effectively prevent external leakage caused by packing loss. It is generally used for the transportation of highly permeable media, such as valves on hydrogen systems, as long as the bellows is not damaged, there will be no leakage.
Design Features:
Zero stem emission,Graphite stem packing secondary seal,Welded seat ring or integral body seating surface,5,000 cycles bellow without failure
Application:
Refinery,PetrochemicalmSolar energy power plantmHot oil, steam supply,General Industry
Key Specification
|
Type |
Bellow Globe Valve |
|
Size |
DN200 |
|
Pressure |
PN25 |
|
Construction |
OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Bellow Seal |
|
Connection |
BW End |
|
Body/Bonnet Material |
1.4408 |
|
Disc Material |
1.4408+STL |
| Bellow Material |
A182 F316 |
|
Stem Material |
A182 F316 |
|
Seat Material |
STL |
|
Bolt/Nut |
B8M/8M |
|
Design Standard |
EN13709 |
|
Face to Face Dimension |
EN558-1 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-60℃~+300℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
