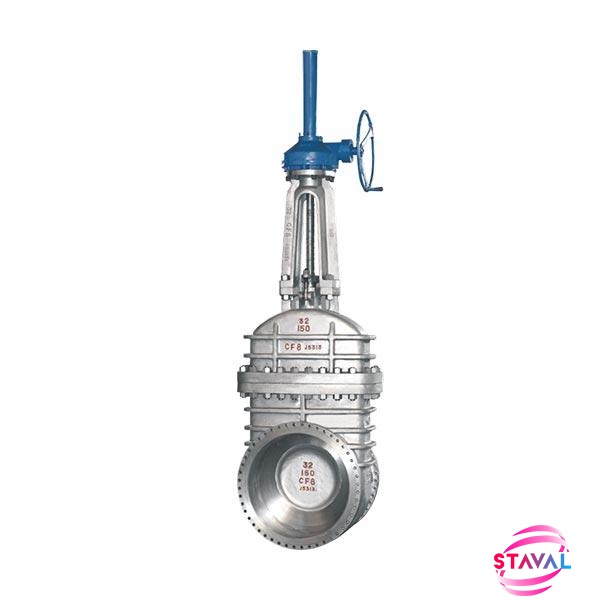

API600 Rising Stem Gate Valve
32Inch,150LB,CF8,CF8Trim,Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon/Stainless/Alloy Steel,Bronze, Cast IronConstruction:
Rising/Non Rising,Bolt/Weld Bonnet,Flexible/Solid WedgeBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
|
Type |
Gate Valve |
|
Size |
32Inch |
|
Pressure |
150LB |
|
Construction |
OS&Y, Rising Stem, Bolt Bonnet, Full Bore, Flexible Wedge |
|
Connection |
RF End |
|
Body/Bonnet Material |
A351 CF8 |
|
Wedge Material |
A351 CF8 |
|
Stem Material |
A182 F304 |
|
Seat Material |
A351 CF8 (Integral Seat) |
|
Bolt/Nut |
B8/8 |
|
Design Standard |
API600 / ASME B16.34 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+200℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
