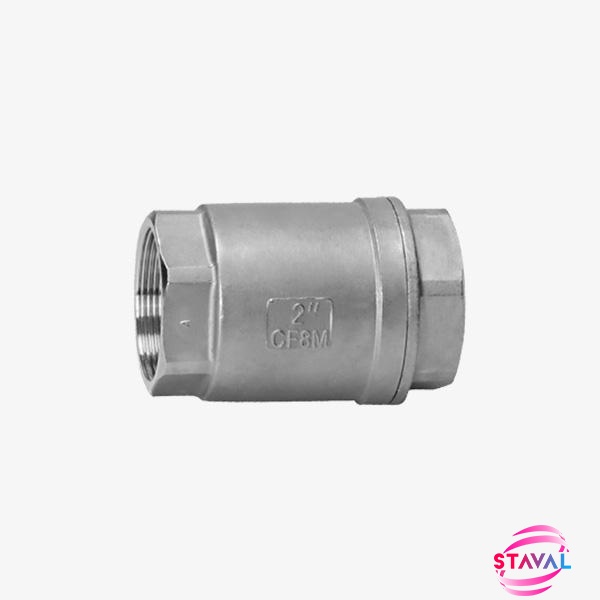

ASME B16.34 Lift Check Valve
2Inch, 1000WOG, CF8M, F316, FNPT
Manufacture STAVAL Factory Offers.
Size Range:
½Inch ~ 4Inch (DN10 ~ DN100)Pressure Range:
1000WOG~6000WOGMaterial Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeBore:
Full BoreEnd Connection:
BW, SW, FNPT,Seat:
Metal SeatWorking Temp.:
-196°C to +600°CProduct Details
Features
Low emission packing;
Key Specification
|
Type |
Lift Check Valve |
|
Size |
2Inch |
|
Pressure |
1000WOG |
|
Construction |
Full Bore |
|
Connection |
FNPT End |
|
Body/Bonnet Material |
CF8M |
|
Disc Material |
SS316 |
|
Spring Material |
X750 |
|
Seat Material |
SS316 |
|
Bolt/Nut |
/ |
|
Design Standard |
ASME B16.34 |
|
Face to Face Dimension |
Manufacture Standard |
|
End Connection |
AISI B 1.20.1 |
|
Fire Safe |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+129℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
